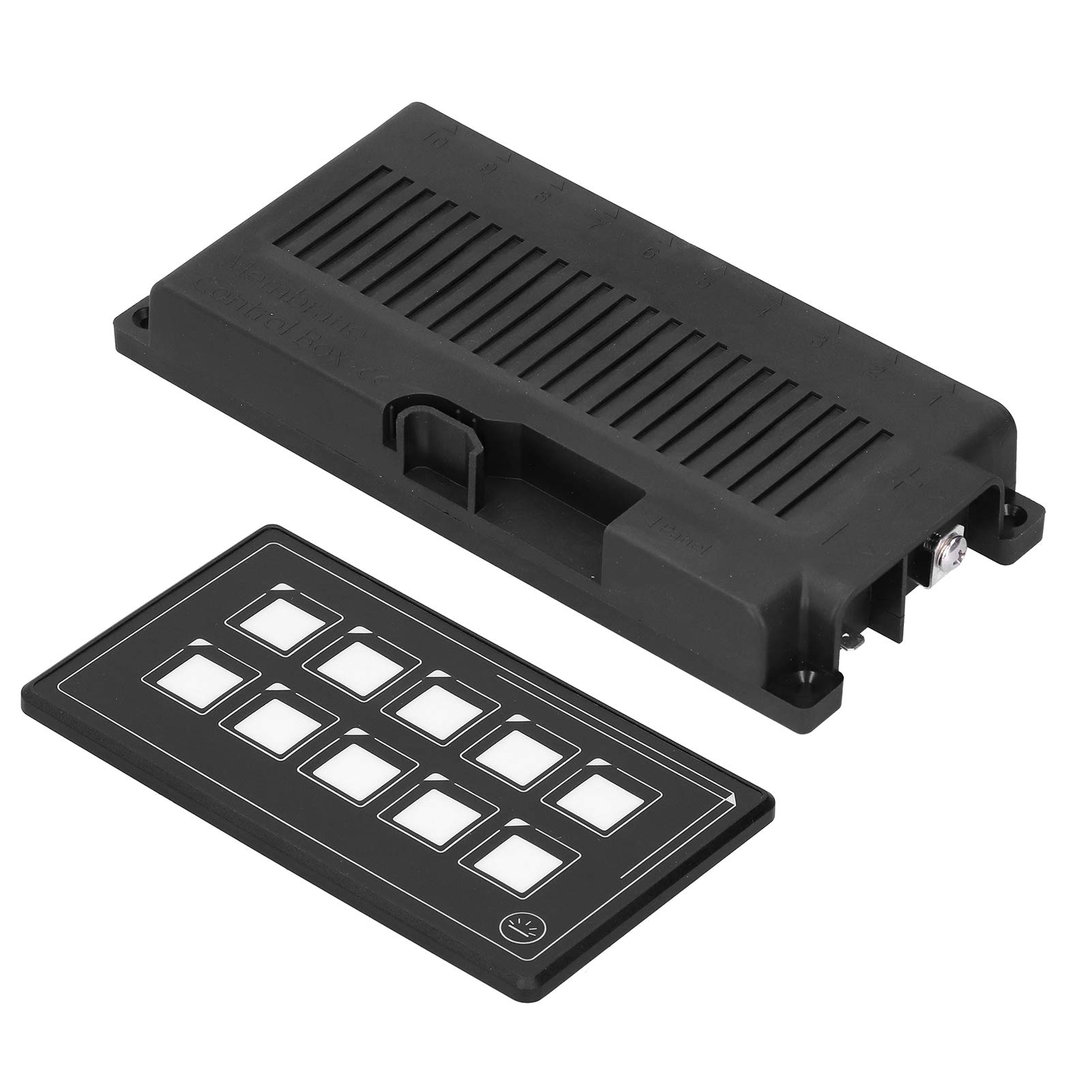

Waterproof 10P LED Backlit Touch Control Panel for RV & Boat - Easy to Install Remote Switch Module | Perfect for Marine, Camping & Off-Grid Power Systems
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:23 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:61412944
Product Description
Feature:1. All buttons can be programmed as reset buttons, and the reset function is usually used in horn or wiper applications.2. The panel can also be remotely controlled via a mobile application (for Android/for iOS system).3. The backlight module design is used to facilitate the operation in the dark. With 60pcs various graphics and text label stickers for easy identification.4. Compact panel size, small drilling, easy to install, save space. Flexible wiring, the relay box can be installed at a distance of 1 meter from the touch screen.5. IP67 waterproof rating, can protect the panel in the case of temporary water immersion.Specification:Item Type: Control Switch Panel Material: PlasticCircuit Protection: Built-in Resettable Fuse(PPTC)Switch Ratings: 10A per branch circuitMaximum Cumulative Current: 60ARated Voltage: DC 11-30VWaterproof: IP67 (only Membrane Panel)Power Terminals: M5 stud size terminalsLoad Terminals: 250 quick terminals(male)Color: BlackHow to Use:Buttons 1-10 (can be customized in the settings)Switch between different control boxesCurrent disconnected device/connected statusSystem voltage monitorSet up Package List:1 x Switch Panel 1 x Controller1 x Sticker1 x Data Connection Cable1 x Manual 4 x Screws1 x Insulated Terminal 1 x Wire Terminal 1 x Terminal 1 x Touchpad1 x Cable Tie
Product Features
☸【Exquisite and Portable, Easy to Install】]: The panel size of switch panel RV electronic accessories is compact, small drilling holes, easy installation, and space saving. The wiring is flexible, and the relay box can be installed 1 meter away from the touch screen.
☸【Backlight Module Design】: RV Control Switch Panel adopts backlight module design, which is convenient for operation in dark places. Comes with 60 various graphics and text labels for easy identification.
☸【Programmable as Reset Button】: All buttons of the 10P Membrane Control Switch Panel can be programmed as reset buttons. The reset function is usually used for horn or wiper applications.
☸【Waterproof】: IP67 waterproof rating, RV APP Control with Backlight Module can protect the panel in the case of temporary immersion.
☸【Remote Control Possible】: The 10P control panel can also be remotely controlled through a mobile application (applicable to Android/iOS systems).
